Battery

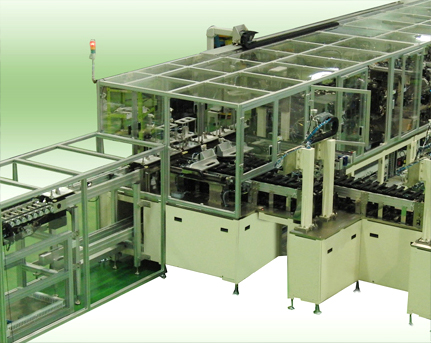

Automated EV Battery Stacking Machine
EV Battery 제조 설비, 양/음극을 순차적으로 고속 Stacking
Specification
| Capacity | 1매 / 1.0sec |
|---|---|
| 주요 Unit | High Speed P.P, Separator Unwinding, Vision Align, Stacking Stage Unit |

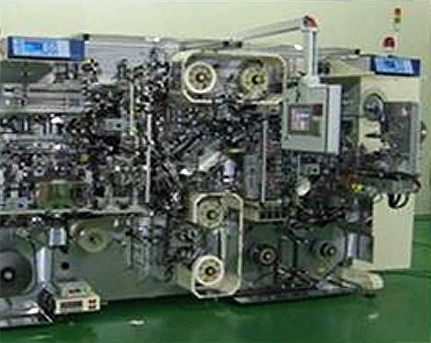

각형 Winder
휴대폰 각형 전지 고속 Winder
Specification
| Capacity | 1pcs / 3sec |
|---|---|
| 주요 Unit | High Speed Winder, EPC Control, Cell, Separator Unwinding, Cutting Moving Control |
원통형 Winder
휴대폰 원통형 전지 고속 Winder
Specification
| Capacity | 1pcs / 2sec |
|---|---|
| 주요 Unit | High Speed Winder, EPC Control, Cell, Separator Unwinding, Cutting Moving Control |

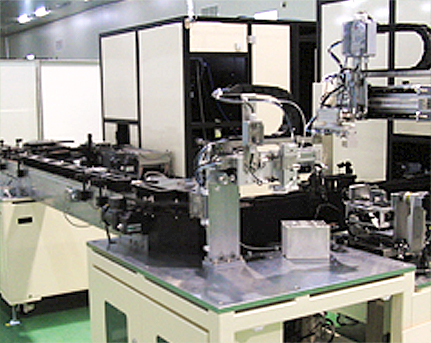

Automated EV Battery Tab Welding Line
EV Battery 제조 설비, Stacking 완료된 Cell에 초음파 융착을 통한 양/음극 Tab Welding
Specification
| Capacity | 1Cell / 4.6sec |
|---|---|
| 주요 Unit | High Speed Transfer, Ultra Sonic Welding, Tape Attachment, Cell Fixing Jig |
Automated HEV Battery Can Cap Welding MC
Terminal이 용접된 Jelly Roll을 Al소재의 Can에 삽입후 Laser Welding과 Leak Inspection 진행
Specification
| Capacity | 1Cell / 7sec |
|---|---|
| 주요 Unit | Laser Welder, Leak Check, Belt Conveyor |

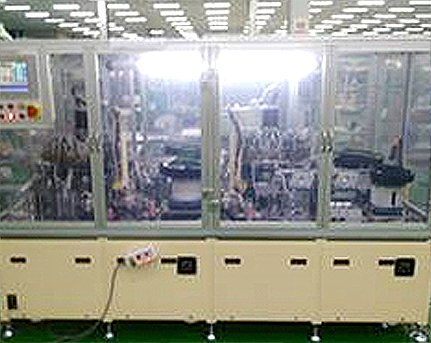

CID 열 융착 MC
Insulator, Cap Down & Vent를 조립, 열융착
Specification
| Capacity | 1pcs / 1sec |
|---|---|
| 주요 Unit | Index Turn Table, Cam Application, Heater, Height Check |

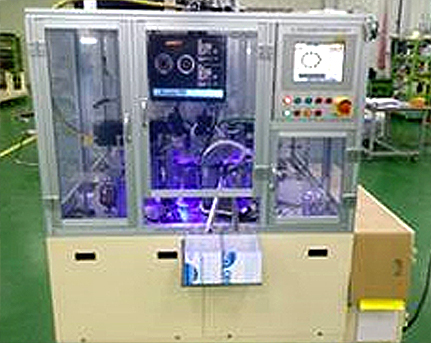

CID Laser Etching MC
Cap Down과 Vent를 공급하여 Laser Etching
Specification
| Capacity | 1pcs / 0.5sec |
|---|---|
| 주요 Unit | Index Turn Table, Cam Application, Laser Source, Vision Check |

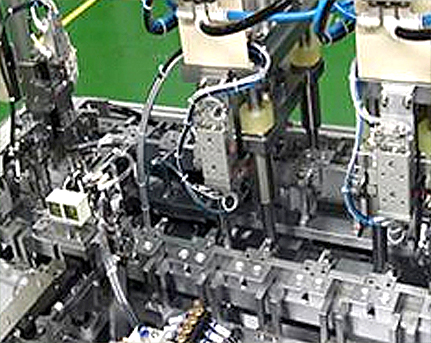

CID Curling MC
CID Assy 부품과 Cap Up 부품을 Curling & Laser Welding
Specification
| Capacity | 1pcs / 1sec |
|---|---|
| 주요 Unit | Transfer Moving, Cam Application, Laser Welding, Vision Check |

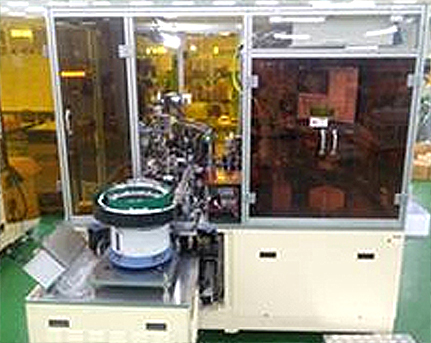

CID Main Ass'y MC
CID Sub Ass'y 부품을 공급받아 Sub Plate를 초음파, Laser용접
Specification
| Capacity | 1pcs / 1sec |
|---|---|
| 주요 Unit | Index Turn Table, Cam Application, Laser Source, Punching Mold |

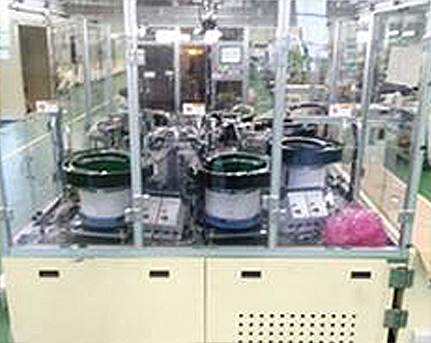

CID Sub Ass'y MC
Insulator, Cap Down, Vent를 순차적 조립
Specification
| Capacity | 1pcs / 0.27sec |
|---|---|
| 주요 Unit | Index Turn Table, Cam Application |
